Semi-automatic hot melt adhesive sealing machine
Equipment model: CJ-F12-Z
Outline specification: 720 (W) * 1100 (H) * 1380 (L) mm
Equipment power: AC220V/2.3kw
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Gluing method: fixture dispensing
Rubber cylinder capacity: 2.5KG/hour
Paper box specification: minimum/75 (L) * 25 (W) * 12 (H) mm/enlarged size 120 (L) * 50 (W) * 20 (H) mm
Paper box specification: maximum/280 (L) * 200 (W) * 85 (H) mm/enlarged version 350 (L) * 250 (W) * 85 (H) mm
Work efficiency: 30-35 units, depending on the box release speed
Operating temperature: 220 ℃
- Parameters
Equipment model: CJ-F12-Z
Outline specification: 720 (W) * 1100 (H) * 1380 (L) mm
Equipment power: AC220V/2.3kw
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Gluing method: fixture dispensing
Rubber cylinder capacity: 2.5KG/hour
Paper box specification: minimum/75 (L) * 25 (W) * 12 (H) mm/enlarged size 120 (L) * 50 (W) * 20 (H) mm
Paper box specification: maximum/280 (L) * 200 (W) * 85 (H) mm/enlarged version 350 (L) * 250 (W) * 85 (H) mm
Work efficiency: 30-35 units, depending on the box release speed
Operating temperature: 220 ℃
Video Demo
40mm Ultra Narrow Paper Box Video Demonstration
Equipment Introduction
CJ-F12-Z hot melt adhesive semi-automatic sealing machine is a series of sealing equipment developed and improved by our company. It was finalized in 2012 and further optimized and improved in 2017. This device is suitable for packaging industries such as food, medicine, tissue, toys, electronics, etc.
This device has the advantages of high universality of paper box specifications, small space occupation, fast transfer, high efficiency, beautiful box gluing, high strength, and low cost. It is an excellent choice for users who have a large demand for hot melt adhesive box gluing and frequent box specification conversion!
Features&Advantages
1. After years of market feedback and continuous upgrading and renovation by our company, this device was launched in 2017 with the latest model, which is more convenient to adjust, easy to use, and energy-saving;
2. Strong versatility and easy to exchange models; We can provide adjustable or fixed adhesive fixtures for sealing various paper box specifications according to user needs;
3. The contact surface between the entire machine and the paper box is all made of SUS304 stainless steel; The glue cylinder is coated with Teflon technology to completely eliminate the carbonization problem of hot melt glue;
4. The current equipment is equipped with our patented box type guide device to eliminate the problem of incorrect box type after product sealing and molding; After modification, the shortest length of the lockable box can be adjusted to 45mm;
5. We can add anti-collision flannel fabric according to the material and appearance requirements of the customer's paper box; Anti slip devices can be installed according to the weight of the product;
6. The shape of the dispensing can be variable, depending on the product and customer needs. The dispensing shape can be spot shaped, strip shaped, and U-shaped; Equipped with fixtures, automatic sealing of hexagonal and octagonal boxes can also be achieved;
7. PLC programmable control ensures stable and reliable system operation;
8. The equipment can be optionally equipped with inkjet conveyor, 3D wrapping machine, labeling machine, etc;
Transport type semi-automatic box sealing machine (optional)
Conveying video demonstration

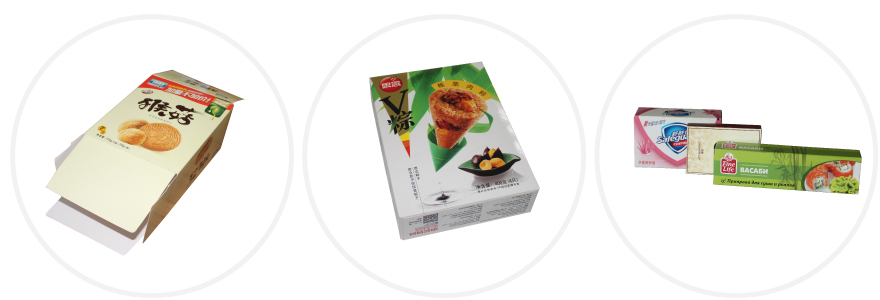

Equipment application case display
Based on reality, many customers have unique product boxes, so our company has also made corresponding adjustments to the CJ-F12-Z. Currently, there are two configurations for everyone to choose from!
| Model configuration | CJ-F12-Z-H (enlarged version) | CJ-F12-Z-B |
| specifications | 810 long × Width 1190 × 1380 high | 780 long × Width 1100 × one thousand three hundred and eighty |
| structure | Sheet metal+stainless steel | Sheet metal+stainless steel |
| compressed air | 0.4-0.7mpa | 0.4-0.7mpa |
| Painting color | Environmental friendly paint sky blue+light gray white | Plain paint sky blue+light gray white |
| Power consumption | AC220V、3.1KW | AC220V、2.8KW |
| Processing efficiency | 30-35/box per minute | 30-35/box per minute |
| Adapt to paper box specifications | Large: 350 long × Width 250 × 85mm high Small: Long 120 × Width 50 × 20mm high | Large: 280 in length × Width 200 × 75mm high Small: 80 in length × Width 25 × 12mm high |
| Box length adjustment | Opening and closing screw handwheel adjustment | Opening and closing screw handwheel adjustment |
| Box height adjustment | Handle slide rail type | Handle slide rail type |
| Box width adjustment | Handwheel roller adjustment | Handwheel roller adjustment |
| Dispensing fixture | Disposable replacement type | Disposable replacement type |
| Melting glue cylinder | Overall aluminum alloy plate machining, Teflon non stick coating treatment process | Overall aluminum alloy plate machining, Teflon non stick coating treatment process |
| Electric heating element | DME in the United States | Taiwan Yitong |
| controller | Megger+Xinjie PLC | Megger+Xinjie PLC |
| Thermostat | Yudian Intelligent 3rd Generation | Yudian Intelligent 3rd Generation |
| Drive solenoid valve | Japan SMC | Japan SMC |
| cylinder | AIRTAC | AIRTAC |
| Delivery fixture set | 3 sets | 3 sets |
| One toolbox | Open end wrench 8-27MM complete set, 1 pointed pliers, 1 Phillips screwdriver each, and 1 hexagonal spoon set | Open end wrench 8-27MM complete set, 1 pointed pliers, 1 Phillips screwdriver each, and 1 hexagonal spoon set |
