High speed continuous boxing machine
Equipment model: CJ-ZH-17B
Outline specifications: 7500 (L) * 1750 (W) * 1680 (H) mm
Equipment power: AC380V/50HZ/7.5KW
Motor power: 1.5KW
Air supply pressure: 0.45-0.8mpa
Type of adhesive used: hot melt adhesive
Glue application method: spray type/socket type can be universal
Rubber cylinder capacity: 10KG/h
Paper box specification: minimum/250 (L) * 35 (W) * 35 (H) mm
Paper box specification: maximum/650 (L) * 60 (W) * 60 (H) mm
Work efficiency: not less than 80 boxes/min
Operating temperature: 210 ℃
Applicable paper box material: 250-350g/㎡
- Parameters
Equipment model: CJ-ZH-17B
Outline specifications: 7500 (L) * 1750 (W) * 1680 (H) mm
Equipment power: AC380V/50HZ/7.5KW
Motor power: 1.5KW
Air supply pressure: 0.45-0.8mpa
Type of adhesive used: hot melt adhesive
Glue application method: spray type/socket type can be universal
Rubber cylinder capacity: 10KG/h
Paper box specification: minimum/250 (L) * 35 (W) * 35 (H) mm
Paper box specification: maximum/650 (L) * 60 (W) * 60 (H) mm
Work efficiency: not less than 80 boxes/min
Operating temperature: 210 ℃
Applicable paper box material: 250-350g/㎡
Video Demo
Equipment Introduction
This equipment is a high-speed continuous packaging machine suitable for automatic packaging of products such as lamp tubes, cling films, silicone paper, aluminum foil boxes, etc. It has the advantages of convenient transfer, high efficiency, stable performance, and high cost-effectiveness.
Features&Advantages
1. Widely absorbing the manufacturing technology and experience of European and American equipment, and developing on the basis of suitable national conditions, it has a high cost-effectiveness compared to products with similar performance;
2. To adapt to the characteristics of domestic paper boxes, symmetrical bidirectional opening is adopted to ensure stable opening of any paper box;
3. The entire line is equipped with a European glue spraying system and high-precision encoder counting, supplemented by a large flow hot melt glue filtering device, making the glue application extremely precise, stable and reliable;
4. The monitoring, alarm, and fault display system is composed of sensing elements, optoelectronic, mechanical overload protection devices, and other devices. It is equipped with a series of protective measures such as no supply of paper boxes without products, no glue spraying without paper boxes, alarm when the box is not in place, and automatic shutdown without products or overload for multiple consecutive times to ensure the safe operation of the machine;
6. Equipped with an automatic feeding auxiliary device, both wired feeding and box feeding can be provided.
7. Large packaging range, convenient adjustment, fast conversion between various specifications and sizes, fully mechanical linkage working mode, compact structure, and reliable performance;
8. Integrating box opening, loading, folding, gluing, and sealing, equipped with an advanced fully automatic high-speed hot melt glue machine, combined with an imported MELTON glue gun from Spain and a compiler for precise counting, the glue spraying system is extremely stable and accurate,
9. It can achieve linkage production with other production lines such as labeling machines, inkjet printers, online weighing machines, etc
10. Each workstation and action is equipped with anti-collision and in place detection, making it safer and more reliable to use;
11. Strong universality, suitable for different quantities of small ear folding boxes, and can also design and modify equipment with the same type of packaging process according to your needs;
workflow

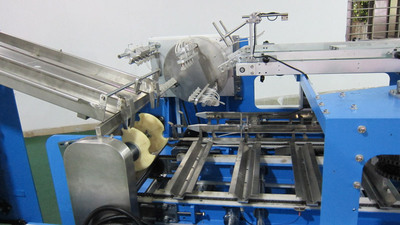

Detail display
Application case presentation
