Professionally Occupied In R&d And Manufacturing Of Automatic Application Equipment For Hot Melt Adhesive
-
Spider Hand Automatic Picking and Sealing Machine
-
Milk white glue automatic sealing machine
-
Fully automatic box sealing machine
-
Roller type adhesive box gluing machine
-
Semi-automatic hot melt adhesive sealing machine
-
Continuous double head roller semi-automatic box sealing machine
-
Continuous spray type semi-automatic box sealing machine
Disposable mask automatic boxing machine
Equipment model: CJ-KZ-02ZH
Outline specification: 4500 (L) × 1250 (W) × 1500 (H) mm
Equipment power: AC220V 3.2KW 50HZ
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Glue application method: automatic glue spraying
Rubber cylinder capacity: 5kg/h
Paper box specification: minimum/185 (L) * 100 (W) * 50 (H) mm (formed paper box)
Paper box specification: maximum/185 (L) * 100 (W) * 100 (H) mm (formed paper box)
Work efficiency: 25-30 pieces/minute
Operating temperature: up to 210 ℃
Applicable paper box material: 200-350g/㎡
- Parameters
Equipment model: CJ-KZ-02ZH
Outline specification: 4500 (L) × 1250 (W) × 1500 (H) mm
Equipment power: AC220V 3.2KW 50HZ
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Glue application method: automatic glue spraying
Rubber cylinder capacity: 5kg/h
Paper box specification: minimum/185 (L) * 100 (W) * 50 (H) mm (formed paper box)
Paper box specification: maximum/185 (L) * 100 (W) * 100 (H) mm (formed paper box)
Work efficiency: 25-30 pieces/minute
Operating temperature: up to 210 ℃
Applicable paper box material: 200-350g/㎡
Video Demo
Equipment Introduction
This product is an intermittent cartoning machine, specially developed for automatic packaging of disposable masks, toys, milk powder, biscuits, electronic scales, etc. Suitable for products with compact paper boxes and product space, requiring extremely high positioning accuracy. This equipment integrates automatic product supply, automatic box supply, and automatic manual placement. It is a preferred equipment for manufacturers with high-end packaging and special requirements.
Features&Advantages
1. Integrating automatic box picking, automatic box opening, automatic manual placement, etc. (optional), product automatic box loading, automatic folding, and automatic socket (glue spraying, box sealing), it has a degree of automation, smooth operation, and high reliability;
2. Adopting high-precision servo mobile positioning, the positioning is based on the reference of the paper box, with extremely high positioning accuracy. It has excellent reliability for products with compact space between the paper box and the item, and also eliminates the problem of instability caused by slightly long use of the entire mechanical chain, which can cause packaging errors;
3. Widely absorbing the manufacturing technology and experience of European and American equipment, and developing on the basis of suitable national conditions, it has a high cost-effectiveness compared to products with similar performance;
4. To adapt to the characteristics of domestic paper boxes, symmetrical bidirectional opening is adopted, and for paper boxes with difficulty in opening, a counter punch opening can be equipped to ensure stable opening of any paper box;
5. Equipped with an advanced fully automatic high-speed hot melt adhesive machine, combined with an imported MELTON spray gun spray system from Spain, it is extremely stable and accurate (and can also be equipped with a plug type seal),
6. It can be equipped with automatic placement instructions, automatic placement of batteries and other accessories (optional).
7. Large packaging range, convenient adjustment, and fast conversion between various specifications and sizes;
8. It can achieve linkage production with other production lines such as labeling machines, inkjet printers, online weighing machines, etc
9. Each workstation and action is equipped with anti-collision and in place detection, making it safer and more reliable to use;
10. Strong universality, suitable for various specifications of paper boxes

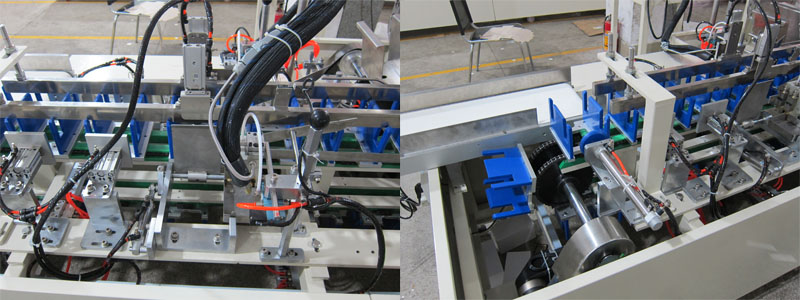

Equipment details display
