Automatic gluing and bean spreading machine for sticky mouse board
Equipment model: CJ-ZSBTJ-30B
Outline specification: 6500 (L) × 850 (W) × 1650 (H) mm
Equipment power: AC220V 2.2KW (excluding glue supply system)
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Gluing method: automatic scraper gluing
Rubber cylinder capacity: 50KG
Paper box specification: minimum/300 (L) * 200 (W) mm
Paper box specification: maximum/600 (L) * 350 (W) mm
Work efficiency: 27-35 pieces/minute
Operating temperature: up to 210 ℃
- Parameters
Equipment model: CJ-ZSBTJ-30B
Outline specification: 6500 (L) × 850 (W) × 1650 (H) mm
Equipment power: AC220V 2.2KW (excluding glue supply system)
Air source pressure: 0.45-0.75mpa
Type of adhesive used: hot melt adhesive
Gluing method: automatic scraper gluing
Rubber cylinder capacity: 50KG
Paper box specification: minimum/300 (L) * 200 (W) mm
Paper box specification: maximum/600 (L) * 350 (W) mm
Work efficiency: 27-35 pieces/minute
Operating temperature: up to 210 ℃
Video Demo
Equipment Introduction
This machine is an automated equipment for targeted research and development of flat adhesive products such as mouse stickers, mosquito stickers, fly stickers, etc. It integrates horizontal automatic feeding, automatic glue spraying, automatic bean spreading, automatic folding, automatic stacking, and finished product cooling and conveying for discharge. Adopting mechanical and electrified synchronous automatic operation, PLC and human-machine interface control, stable and reliable operation;
Features&Advantages
1. Multi stage continuous working mode, can also be used independently, with a wide range of applications;
2. Fully mechanical linkage, not affected by speed, uniform and precise glue application position, without any exposure;
3. The chain is equipped with a push plate method to transport cardboard, providing more accurate positioning;
4. The cardboard size adjustment mechanism adopts a handwheel adjustment method, and customers can manually adjust the cardboard size according to it, making it convenient and fast to convert cardboard specifications;
5. Adopting human-machine interface PLC control, sensing elements, photoelectric, and mechanical overload protection devices to form a monitoring, fault, and alarm display system, without cardboard or glue spraying;
6. This equipment adopts an imported glue gun system combined with an encoder for precise counting, ensuring high precision and stable performance of the glue spraying system;
7. We can customize various products with the same bonding method and different specifications according to your needs;

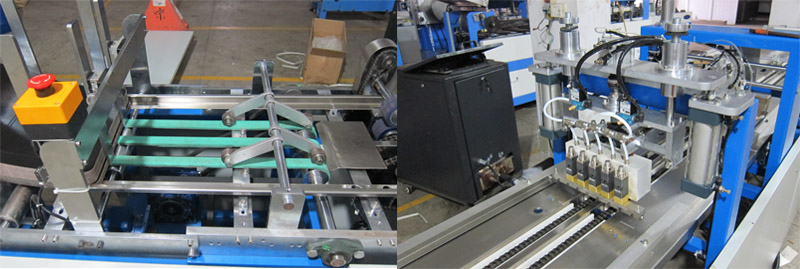

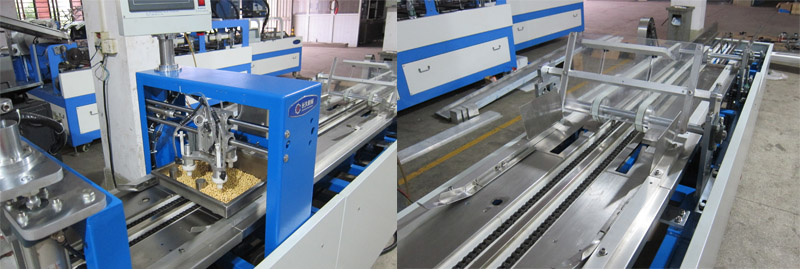

Equipment Details
